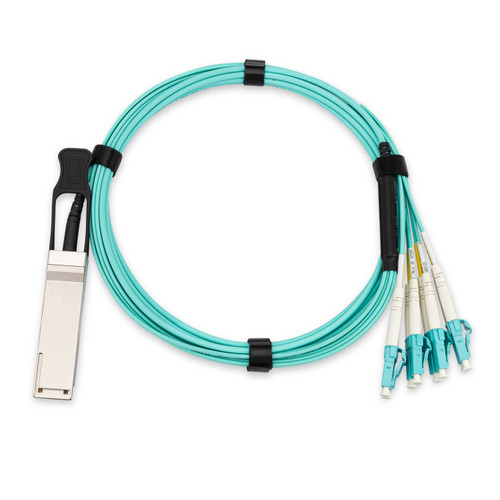

Cisco Compatible QSFP-8LC-AOC10M Breakout Active Optical Cable

Cisco Compatible QSFP-8LC-AOC10M 40GBase-AOC QSFP+ to 8x LC 10m Breakout Active Optical Cable

Part Number: QSFP-8LC-AOC10M-HPC

Specifications:

• 100% Cisco Compatible
• Full duplex 4 channel 850nm parallel breakout active optical cable (AOC)
• 40Gbps Aggregate Data Rate
• 40GBASE QSFP+ to 8x LC Connectors
• Up to 10.3 Gbps Data Rate per channel
• Multi-channel 10Gb Ethernet transmission up to 4 channels
• Infiniband transmission at 4ch SDR(2.5Gbit/s), DDR(5Gbit/s) and QDR(10Gbit/s)
• Low power consumption of typical 0.8W per end
• Length: 10 Meters
• OM3 Multimode Fiber (MMF)
• Operating Temperature Range: 0ºC to +70ºC
• 4ch 850nm VCSEL array, 4ch PIN photo detector array
• 3.3V power supply voltage
• RoHS 6 compliant
